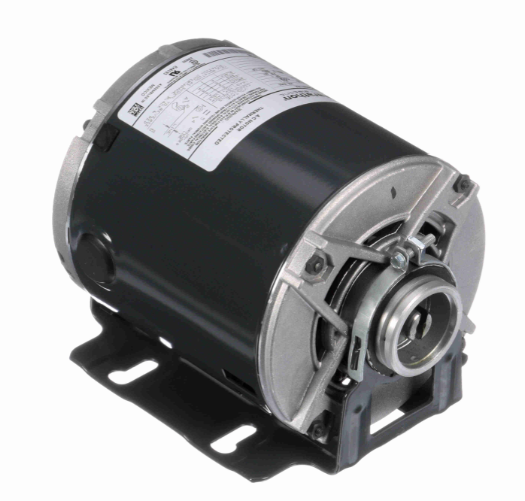

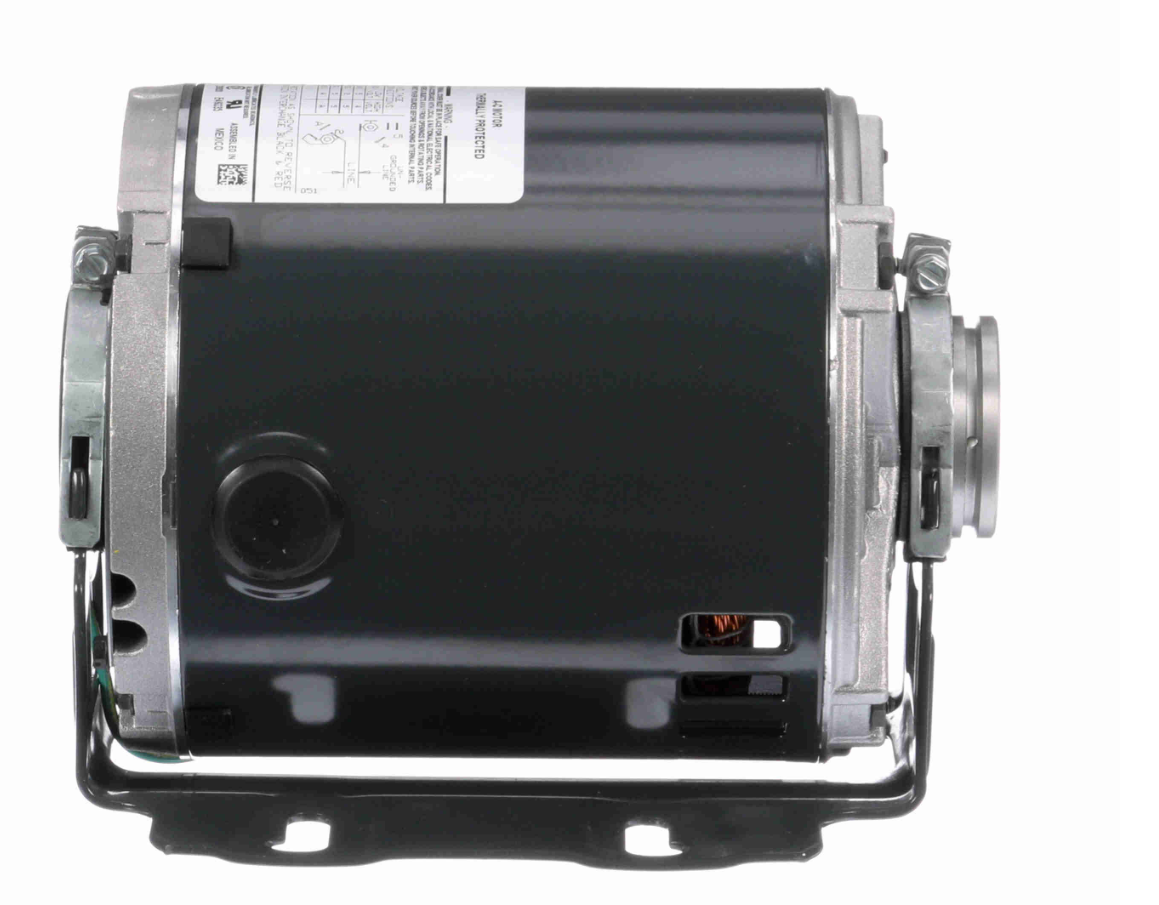

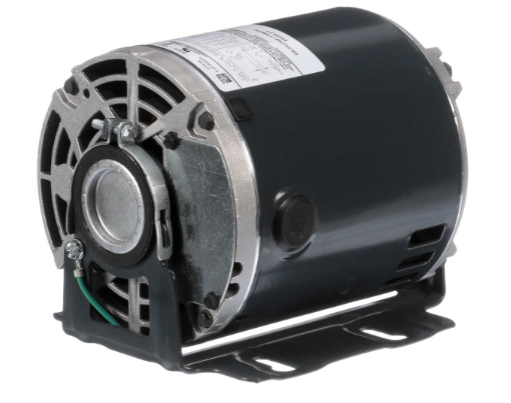

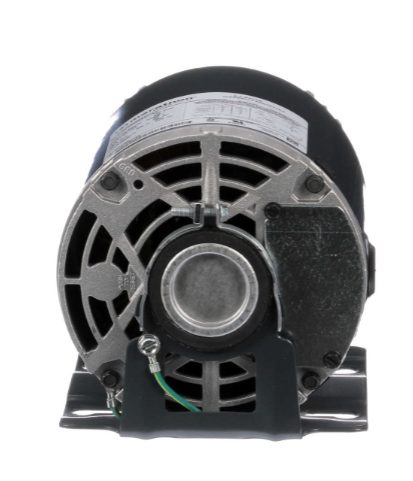

Split-Phase Carbonator Pump AC Motors
产品品牌：联嘉电气
系列：出口空调电机
款式：
型号：Split-Phase Carbonator Pump AC Motors
服务热线：13961291308
系列：出口空调电机
款式：
型号：Split-Phase Carbonator Pump AC Motors
服务热线：13961291308
♦特别说明：产品图片以及参数跟实际产品略有差异。
♦定制说明：一切规格按照客户实际情况或考察后量身定制，支持非标定制。
♦库存配送：有货，全国送货保障！
♦温馨提示：本产品一经下单生产，非质量问题不支持退货！
♦定制说明：一切规格按照客户实际情况或考察后量身定制，支持非标定制。
♦库存配送：有货，全国送货保障！
♦温馨提示：本产品一经下单生产，非质量问题不支持退货！
产品描述
Split-phase carbonator pump AC motors are single phase with a lower starting torque for softer startup where the pump must gradually come up to speed after startup. They have an open dripproof (ODP) enclosure with ventilation openings in the endshields and shell positioned so that drops of liquid falling within 15° from vertical will not affect motor performance.
| Nameplate Specifications | |||
| Phase: | 1 | Output HP: | |
| Output KW: | Voltage: | 115/230 V | |
| Speed: | 1725 rpm | Service Factor: | 1 |
| Frame: | 48Y | Enclosure: | Drip Proof |
| Thermal Protection: | Automatic | Efficiency: | 68.30% |
| Ambient Temperature: | 40 掳C | Frequency: | 60 Hz |
| Duty: | Continuous | Insulation Class: | B |
| KVA Code: | L | Drive End Bearing Size: | 6203 |
| Opp Drive End Bearing Size: | 6203 | UL: | N |
| CSA: | Yes | CE: | N |
| Number of Speeds: | 1 | ||
| Technical Specifications | |||
| Electrical Type: | Split Phase | Starting Method: | SM |
| Poles: | 4 | Rotation: | Counterclockwise/Clockwise |
| Mounting: | Resilient Base | Motor Orientation: | ANY |
| Drive End Bearing: | BALL | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Overall Length: | 9.15 in |
| Frame Length: | 6.62 in | Shaft Diameter: | 0.630 in |
| Shaft Extension: | 0.17 in | ||
| HP | Nameplate RPM | Voltage | Frame | Shaft Dia. | Motor Bearings | Motor Service Factor | CROSS REFERENCE | |
| 1/4 | 1,725 | 115V AC | 48Y | 1/2 in | Ball | 1 | MARATHON | 5KH32DN5587X |
| 1/4 | 1,725 | 208-240V AC | 48Y | 5/8 in | Ball | 1 | MARATHON | 5KH32GNB813X |
| 1/3 | 1,725 | 115/230V AC | 48Y | 5/8 in | Ball | 1 | MARATHON | 5KH32FN5586X |
| 1/3 | 1,725 | 115/230V AC | 48Y | 5/8 in | Ball | 1 | MARATHON | 5KH33GNA444X |
| 1/3 | 1,725 | 115V AC | 48Y | 1/2 in | Ball | 1.15 | MARATHON | 5KH32FN5586X |
| 1/3 | 1,725 | 115V AC | 48Y | 5/8 in | Ball | 1 | MARATHON | 5KH32ENA443X |
| 1/3 | 1,725 | 230V AC | 48Y | 5/8 in | Ball | 1 | MARATHON | 5KH32GNB812X |
| 1/2 | 1,725 | 115/230V AC | 48Y | 5/8 in | Ball | 1 | MARATHON | 5KH36MNA445X |
| 1/2 | 1,725 | 115V AC | 48Y | 5/8 in | Ball | 1.2 | MARATHON | 5KH36MNB637X |
| 3/4 | 1,725 | 115/230V AC | 48Y | 5/8 in | Ball | 1 | MARATHON | 5KH37PNA479X |
